Product Description

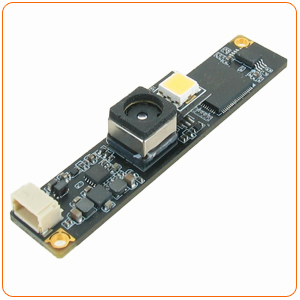

The W12AN3-43L7 12MP USB Camera Module delivers exceptional image clarity and performance for a wide range of applications, from industrial PCs to consumer electronics. Powered by a high-resolution 1/3.06” CMOS image sensor with up to 12-megapixel output, this camera module supports multiple resolutions including 4K Ultra HD at 30 fps and Full HD at 60 fps, ensuring smooth and detailed video capture. With built-in auto focus, advanced image pre-processing, and full compliance with UVC standards, it is an ideal plug-and-play solution for integration into modern devices.

Product Scenario

The W12AN3-43L7 module is designed for versatile deployment across industrial PCs, notebooks, tablets, and IPTV systems. It excels in environments that require high-resolution imaging, low-latency video transmission, and multi-platform compatibility. Whether used for video conferencing, industrial inspection, AI-powered vision systems, or multimedia streaming, this camera module ensures reliable performance with outstanding image quality.

Product Advantage

• High-Resolution Imaging: Supports up to 12MP still capture and 4K Ultra HD video, ideal for professional and industrial use.
• Wide Compatibility: Works seamlessly with Windows, Mac OS, Linux, and Android platforms via standard UVC drivers.
• Enhanced Image Processing: Features automatic white balance, exposure, gamma correction, noise reduction, and anti-flicker control for superior clarity.
• Flexible Integration: Compact 60 × 12 × 7.46 mm module size with USB 2.0 connectivity ensures easy system integration.
• Eco-Friendly Compliance: Meets RoHS 2.0 / REACH standards with low power consumption and support for suspend/hibernation modes.

Key Specifications

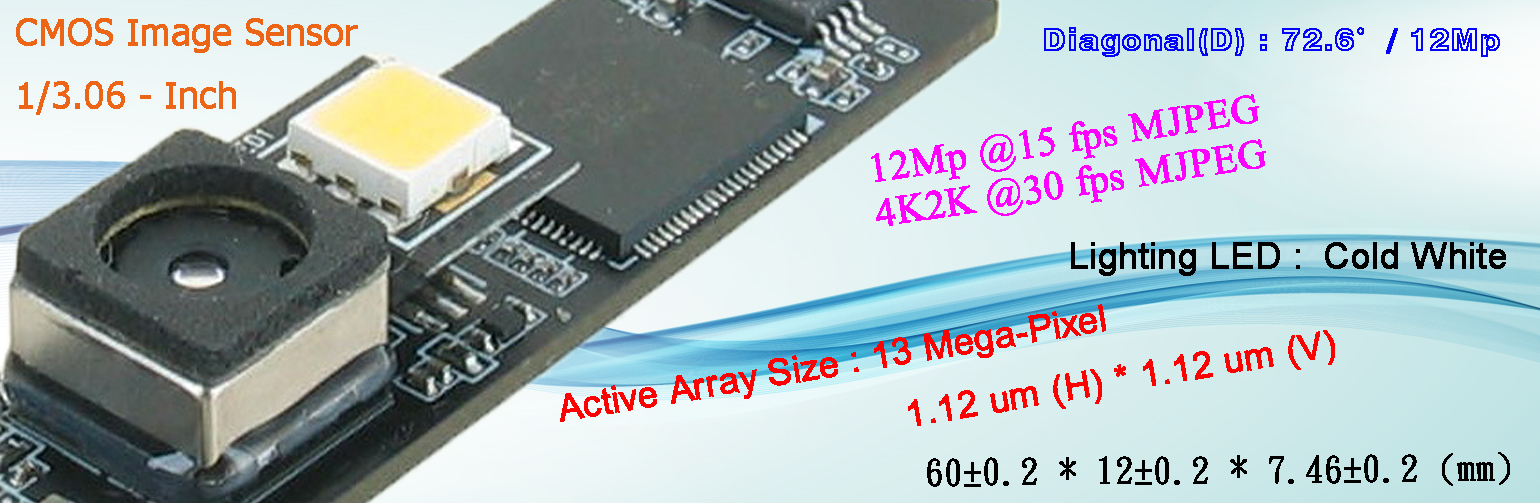

1. Image Sensor: 1/3.06” CMOS, 13MP active array (4224 × 3192), pixel size 1.12 µm
2. Resolution & Frame Rate:
   • 12MP (3840 × 3104) – 15 fps (MJPEG)
   • 4K2K (3840 × 2160) – 30 fps (MJPEG)
   • Full HD (1920 × 1080) – 60 fps (MJPEG)
   • HD (1280 × 720) – 60 fps (MJPEG)
3. Lens: 6-element (5P + IR filter), F2.0, Auto Focus (10 cm ~ ∞), FoV up to 75.8°
4. Image Processing: Auto White Balance, Exposure, Gamma, Contrast, Brightness, Hue, Saturation, Sharpness, Noise Reduction, Lens Shading, Backlight Compensation
5. Interface: USB 2.0, compliant with UVC 1.1/1.5
6. Output Formats: YUY2, MJPEG
7. System Support: Windows 7/8.1/10 (32/64-bit), Mac OS X 10.4.8+, Linux (UVC), Android 4.0+ (UVC)
8. Module Size: 60 × 12 × 7.46 mm
9. Lighting: Built-in LED, cold white, 120° view angle
10. Environmental: Operating 0°C ~ 70°C, Performance 0°C ~ 60°C
11. Certifications: RoHS 2.0 / REACH compliant
