W12AZ5-38L7: 12MP USB Camera Module

This compact and powerful 12MP USB camera module, model W12AZ5-38L7, is an ideal solution for a wide range of professional imaging applications. Featuring a high-quality 1/3.06" CMOS sensor and a high-performance controller IC, it captures crisp, clear images and videos. With seamless plug-and-play functionality via USB 2.0 and support for both YUY2 and MJPEG formats, this module offers exceptional flexibility and performance. Its robust features, including auto-focus and a wide array of image processing controls, make it a versatile choice for developers and system integrators.

Product Description


The W12AZ5-38L7 is a high-resolution, 12-megapixel USB camera module designed for seamless integration into various devices. It is fully compliant with the USB Video Class (UVC) 1.1/1.5 and USB Audio Class (UAC) 1.0 standards, ensuring effortless compatibility with a wide range of operating systems, including Windows, Mac OS, and Linux. This module features advanced image processing capabilities such as automatic white balance, backlight compensation, and defect-pixel correction to deliver superior image quality in diverse lighting conditions. Its compact dimensions and simple 5-pin connector make it easy to embed into your product designs, offering both power and data transmission through a single USB connection.

Product Scenario

This versatile camera module is perfect for applications that require high-definition imaging in a compact form factor. It is particularly well-suited for use in Industrial PCs, where reliability and high resolution are critical for tasks like quality control and monitoring. For Notebook PCs and Tablet PCs, the module provides a significant upgrade in camera performance, enabling crystal-clear video conferencing and high-quality photography. It can also be integrated into IPTV systems for interactive video experiences. The W12AZ5-38L7's auto-focus and wide field of view make it an excellent choice for applications ranging from educational tools to video surveillance and automated systems.

Product Advantage

The W12AZ5-38L7 camera module offers a significant competitive edge through its robust feature set and superior performance. Its exceptional 12MP resolution with support for high frame rates, including 30fps at 4K2K (3840x2160) in MJPEG format, ensures smooth and detailed video capture. The extensive suite of image pre-processing controls provides fine-tuned adjustments for brightness, contrast, and color, allowing for optimal image quality tailored to specific environments. Additionally, the inclusion of a high-quality digital MEMS microphone ensures clear audio capture. The module's RoHS 2.0 / REACH compliance and power-saving features make it an environmentally friendly and energy-efficient component, providing a reliable and sustainable solution for your imaging needs.

Key Specifications

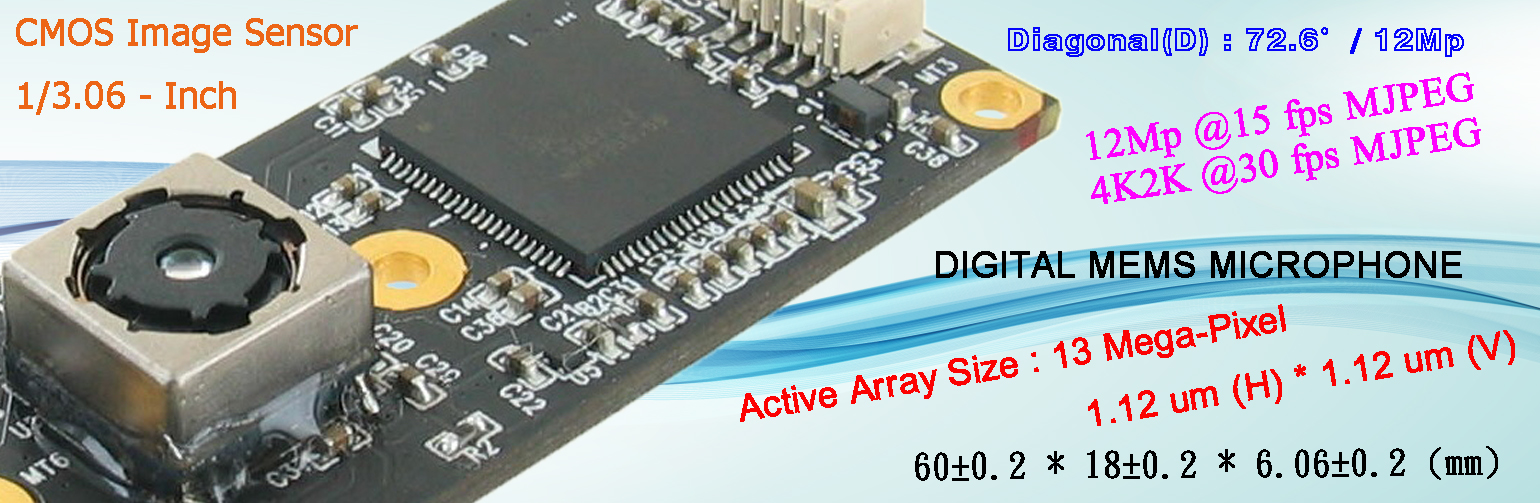

1. Resolution & Frame Rate: Supports resolutions up to 12MP (3840 x 3104) at 15 fps (MJPEG) and 4K2K (3840 x 2160) at 30 fps (MJPEG).
2. Image Sensor: 1/3.06" CMOS sensor with an active array size of 13 megapixels (4224 x 3192).
3. Lens: Features a 5-element plastic lens with an IR filter, an F-No. of 2.0, and a wide Field of View (FOV).
4. Focus: Auto-focus with a focus range of 10cm to infinity.
5. Interface: USB 2.0 High-Speed (HS) compliant with USB Video Class (UVC) 1.1/1.5 and USB Audio Class (UAC) 1.0.
6. Image Processing: Includes automatic controls for brightness, contrast, white balance, exposure, and backlight compensation. Also features defect-pixel correction and de-noise functions.
7. System Compatibility: Compatible with Windows (7, 8.1, 10), Mac OS X (10.4.8 or later), and Linux with UVC driver.
8. Connector: Easy-to-use 5-Pin Pitch 1.0mm connector.
9. Audio: Integrated omni-directional digital MEMS microphone with a sensitivity of -26 dBFS.
10. Dimensions: Compact size of 60±0.2 x 18±0.2 x 6.06±0.2 mm.
11. Compliance: RoHS 2.0 / REACH Compliant.
