Product Description

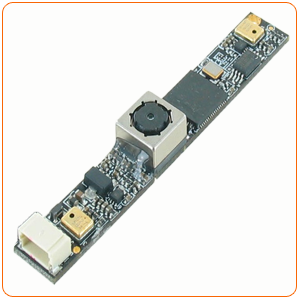

The W5AY5-16S6 is a high-performance 5Mp USB Camera Module featuring a 1/4-inch CMOS sensor and Auto Focus capability. It supports USB 2.0 High-Speed connectivity, is UVC 1.1 compliant, and offers a wide range of image pre-processing functions such as Automatic White Balance, Anti-Flicker Control, and Defect-Pixel Correction for superior image quality. The module delivers resolutions up to 2592x1944 at 15 fps (MJPEG) and 640x480 at 30 fps (YUY2/MJPEG), operating on a standard USB 5.0V power supply. Its compact dimensions and standardized 5-pin 1.0mm pitch connector ensure easy integration. It is also RoHS 2.0 and REACH compliant.

Product Scenario

This versatile 5Mp USB Camera Module is designed for seamless integration into various electronic systems requiring high-resolution video capture. Its capabilities make it ideal for use in Industrial PCs, Notebook PCs, and Tablet PCs, enhancing their functionality with crisp image and video input. Furthermore, its UVC compliance and broad OS support (Windows, Mac OS X, Linux) enable straightforward deployment in applications such as IP TV, general video conferencing, and other embedded vision systems where reliability and performance across different platforms are crucial. The support for low light compensation further extends its utility in varied lighting environments.

Product Advantage

The W5AY5-16S6 module offers a significant competitive edge through its combination of high resolution, fast frame rates, and extensive image optimization features. The 5.0Mp resolution with Auto Focus ensures clear, detailed imaging across a wide focus range (10cm to Infinity). Its rich set of image pre-processing controls guarantees excellent image quality under diverse conditions. The module's plug-and-play functionality via USB 2.0 (High-Speed/Full-Speed auto-sensing) and its compatibility with major operating systems simplify integration and ensure ease of use. Additionally, its compact size and compliance with environmental standards (RoHS/REACH) make it a robust and sustainable choice for modern product designs.

Key Specifications

1. Sensor: 1/4-inch CMOS Image Sensor with 5.0M pixel Active Array (2592(H) x 1944(V)).

2. Focus: Auto Focus (AF) mode with a focus range of 10cm to Infinity.

3. Resolution & Frame Rate (Max): 2592 * 1944 @ 15 fps (MJPEG) / 640 * 480 @ 30 fps (YUY2/MJPEG).

4. Interface: USB 2.0 High-Speed and Full-Speed Compatible, USB Video Class 1.1 Compliant.

5. Image Output Format: YUY2, MJPG.

6. Field of View (Diagonal): 65.5° ±5%.

7. Lens: 4 Plastic + IR Filter (5E), F No. 2.8 ±5%.

8. Image Pre-processing Features: Includes Automatic White Balance, Anti-Flicker Control, Automatic Exposure Control, and Low Light Compensation Control.

9. System Support: Windows 7/8.1/10 (32/64 Bit), Mac OS X 10.4.8 or Later, Linux With UVC Driver.

10. Power: Operation Voltage USB 5.0V, Current consumption under 360mA (Streaming), Suspend < 5mA.

11. Dimensions: 59.8±0.2 * 9.0±0.2 * 5.4±0.2 (mm).
