Product Description

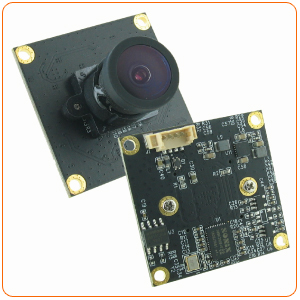

The W3FN5-34LFH2 is a high-performance 3MP USB Camera Module designed for seamless integration into a wide array of devices. Featuring a 1/3" CMOS Image Sensor with an active array size of $2304(H)\times 1536(V)$ pixels, it delivers clear, high-resolution imagery. This module offers flexible video output with YUY2, MJPEG, and H.264 formats, supporting Full HD ($1920\times 1080$) at 30 fps using MJPEG or H.264 codecs. Its USB 2.0 interface ensures plug-and-play compatibility, while advanced image pre-processing functions—including Automatic Exposure Control (AEC), Automatic White Balance Control (AWB), and Defect-Pixel Correction—guarantee optimal image quality in various lighting conditions.

Product Scenario

This versatile USB camera module is an ideal imaging solution for developers and manufacturers in need of a compact, reliable camera with wide operating system support. Its robust design and feature set make it perfectly suited for Industrial PC applications, where high clarity and stable performance are crucial. Furthermore, its compliance with the USB Video Class 1.1 and ease of integration via a 4-pin pitch 1.25mm connector make it an excellent choice for Notebook PCs, Tablet PCs, and even IP TV systems requiring integrated video capabilities for communication or security.

Product Advantage

The W3FN5-34LFH2 module stands out due to its comprehensive suite of image control features, providing users with total command over video output. Benefits include superior image fidelity from its 5 Glass + IR Filter (6E) lens composition and a wide Diagonal Field of View (FOV) of $158^{\circ }\pm 5\%$ for the $16:9$ aspect ratio, capturing more context in a single frame. The module supports a full range of pre-processing controls like Backlight Compensation and Anti-Flicker Control, ensuring stable, professional-grade video. Its wide OS compatibility (Windows, Mac, Linux with UVC) and support for Power Saving (Suspend/Hibernation) also ensure energy efficiency and broad system interoperability.

Key Specifications

1. Resolution & Frame Rate: Supports Full HD ($1920\times 1080$) at 30 fps (MJPEG/H.264).
2. Image Sensor: 1/3" CMOS Image Sensor with 3.0M pixel active array.
3. USB Interface: USB 2.0 High-speed and USB Video Class 1.1 compliant.
4. Field of View (FOV): Wide Diagonal FOV of $158^{\circ }\pm 5\%$ (for $16:9$).
5. Lens Composition: 5 Glass + IR Filter (6E), F No. 2.0, and Fixed Focus.
6. Image Processing: Includes AEC, AWB, AGC, Defect-Pixel Correction, and Anti-Flicker Control.
7. Output Format: Supports YUY2, MJPEG, and H.264 output formats.
8. OS Support: Compatible with Windows 7/8.1/10, Mac OS X, and Linux (UVC driver).
9. Power & Operating Temp: Operates on USB 5.0V; Operating temperature range is $0^{\circ }\text{C}\sim 70^{\circ }\text{C}$.
10. Connector: Easy-to-use 4-pin pitch 1.25mm connector type.
