Product Description

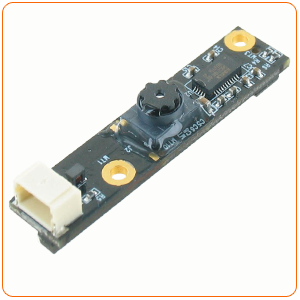

The W2FN5-HA25X is a compact 2-megapixel USB camera module designed for seamless integration into various electronic devices. Featuring a 1/6” CMOS sensor and fixed-focus lens, it delivers high-quality video with resolutions up to Full HD (1920×1080) at 30fps in MJPEG format. With advanced image pre-processing functions such as automatic exposure, white balance, de-noise, and anti-flicker control, the module ensures clear and stable imaging under diverse conditions. Its USB 2.0 interface provides plug-and-play compatibility with multiple operating systems, making it an ideal solution for industrial, commercial, and consumer applications.

Product Scenario

The W2FN5-HA25X camera module is tailored for versatile applications including industrial PCs, notebooks, tablets, and IPTV devices. It can be deployed in video conferencing systems, industrial monitoring, educational platforms, and multimedia devices. Thanks to its compact size, robust performance, and cross-platform support, it is well-suited for both embedded system designs and standalone webcam use cases.

Product Advantage

• High Compatibility: Supports Windows, Mac OS, and Linux UVC drivers for broad system integration.

• Optimized Imaging: Built-in corrections for color, gamma, brightness, and contrast ensure accurate and natural visuals.

• Reliable Design: USB-powered with low consumption (<320mA) and compliance with RoHS/REACH standards.

• Compact & Durable: Slim module dimensions with fixed-focus lens optimized for mid-range clarity.

• Flexible Performance: Offers multiple resolutions and frame rates, with default VGA settings for efficient streaming.

Key Specifications

1. Interface: USB 2.0 HS/FS, UVC 1.1 compliant

2. Resolution & Frame Rates:

   • Full HD (1920×1080): 30fps (MJPEG), 5fps (YUY2)

   • SXGA/HD: up to 30fps

   • VGA & lower: 30fps (YUY2/MJPEG)

3. Image Sensor: 1/6” CMOS, 1932(H) × 1092(V), pixel size 1.4µm × 1.4µm

4. Lens: 4P + IR filter, FOV 77.5° diagonal, F2.0, fixed focus (50cm typical, 28–247cm range)

5. Image Processing: Lens shading correction, defect-pixel correction, gamma/color correction, AEC, AWB, AGC, brightness/contrast/hue/saturation/sharpness control, backlight compensation, anti-flicker, de-noise

6. Image Format: YUY2, MJPEG

7. System Support: Windows XP/7/8/Vista (32/64-bit), Mac OS X 10.4.8+, Linux with UVC driver

8. Power Consumption: <320mA during streaming; <5mA in suspend mode

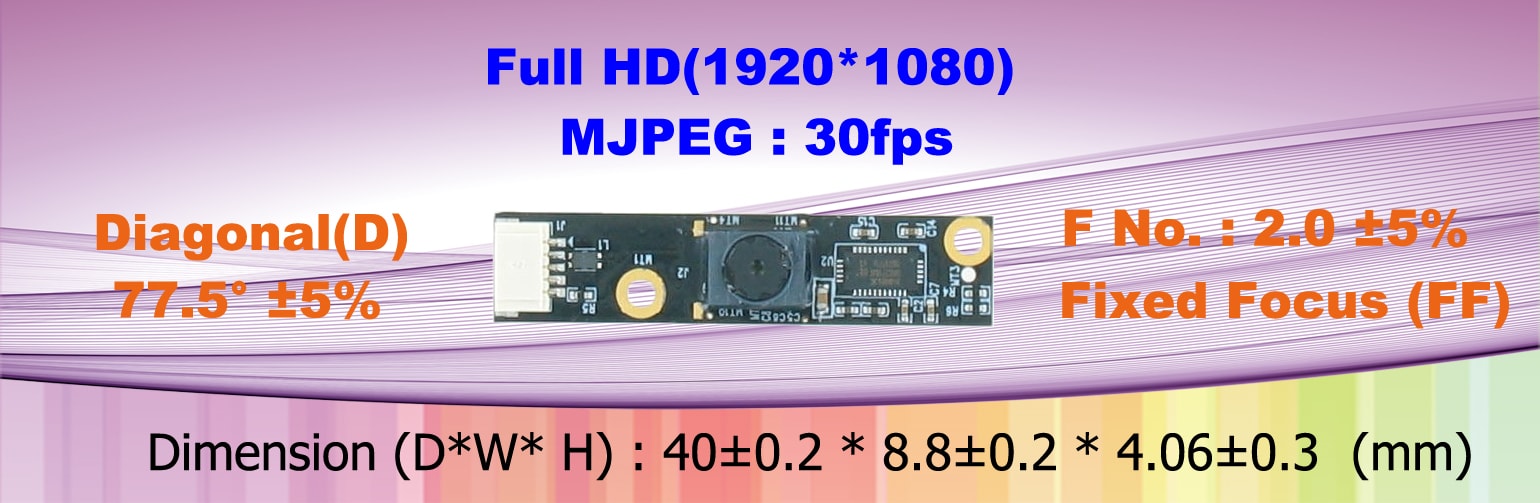

9. Module Dimensions: 40 × 8.8 × 4.06 mm (± tolerance)

10. Compliance: RoHS/REACH, power saving modes supported
