Products > USB Camera Module > 3M Pixels

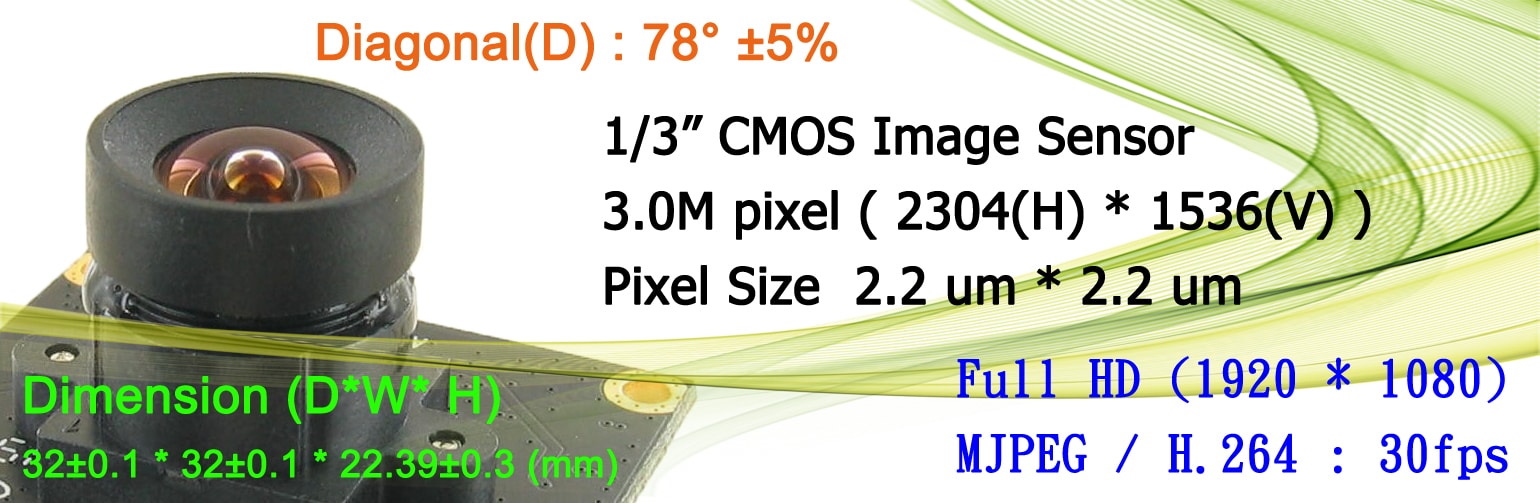

USB Camera Module , 3M , Fixed Focus, D : 78°
PN : W3FN5-33P7H2
1. 3M Pixels
2. Full HD@30fps, MJPEG &  H.264
3. Fixed Focus(FF)
4. FOV(D) : 78°


Overview:

Product Description

The W3FN5-33P7H2 is a high-performance 3MP USB Camera Module designed for a wide range of computing and industrial imaging applications. It features a 1/3-inch CMOS sensor delivering crisp and detailed 3.0-megapixel images (2304 × 1536) with Full HD video support up to 30fps in MJPEG and H.264 formats.
With full compliance to USB 2.0 High-Speed and UVC 1.1 standards, this module ensures seamless plug-and-play operation across major operating systems. It integrates a high-quality 2-glass + 2-plastic lens with IR filter, achieving an 83° field of view and superior color accuracy. The compact 32 × 32 × 22.39 mm design makes it ideal for embedded system integration.

Product Scenario

The W3FN5-33P7H2 is well-suited for a variety of imaging environments, including:

  • Industrial PCs for equipment monitoring and automation systems

  • Notebook and Tablet PCs for video conferencing or embedded camera functions

  • IP TVs and smart displays for media communication and interactive applications

  • Linux and embedded platforms that require reliable UVC-compliant camera performance

Product Advantage

  • High-definition imaging with 3.0MP CMOS sensor and multiple output formats (YUY2, MJPG, H.264)

  • Excellent image optimization through automatic white balance, exposure, and backlight compensation

  • Plug & Play compatibility with Windows, Mac, and Linux OS

  • Compact and lightweight module structure for flexible integration

  • Low power consumption with suspend and hibernation support

  • RoHS / REACH compliant, meeting modern environmental standards





Go Top
Specifications:

Key Specifications
  1. Image Sensor: 1/3” CMOS, 3.0MP (2304 × 1536)
  2. Lens: 2 Glass + 2 Plastic + IR Filter (5E)
  3. Field of View: M: 83° ±5%, D: 78° ±5%, H: 70° ±5%, V: 43° ±5%
  4. Effective Focal Length: 3.0mm ±5%
  5. Aperture (F No.): F2.4 ±5%
  6. Focus Type: Fixed Focus (FF), Distance 100cm (Range 63cm–243cm)
  7. Video Resolution & Frame Rates:
    • Full HD (1920×1080) @30fps (MJPG/H.264)
    • HD (1280×720) @30fps (MJPG/H.264)
    • VGA (640×480) @30fps
  8. Output Format: YUY2 / MJPG / H.264
  9. Interface: USB 2.0 High-Speed, UVC 1.1 Compliant
  10. Operating Voltage: 5.0V (USB powered), Current < 350mA
  11. Operating Temperature: 0°C ~ 70°C (Stable Image: 0°C ~ 50°C)
  12. Dimensions: 32 × 32 × 22.39 mm
  13. OS Compatibility: Windows 7/8.1/10, Mac OS X 10.4.8+, Linux (UVC driver)
  14. Environmental: RoHS / REACH Compliant





For more detail spec, please mail to info@wellta.com
