Products > USB Camera Module > 8M Pixels

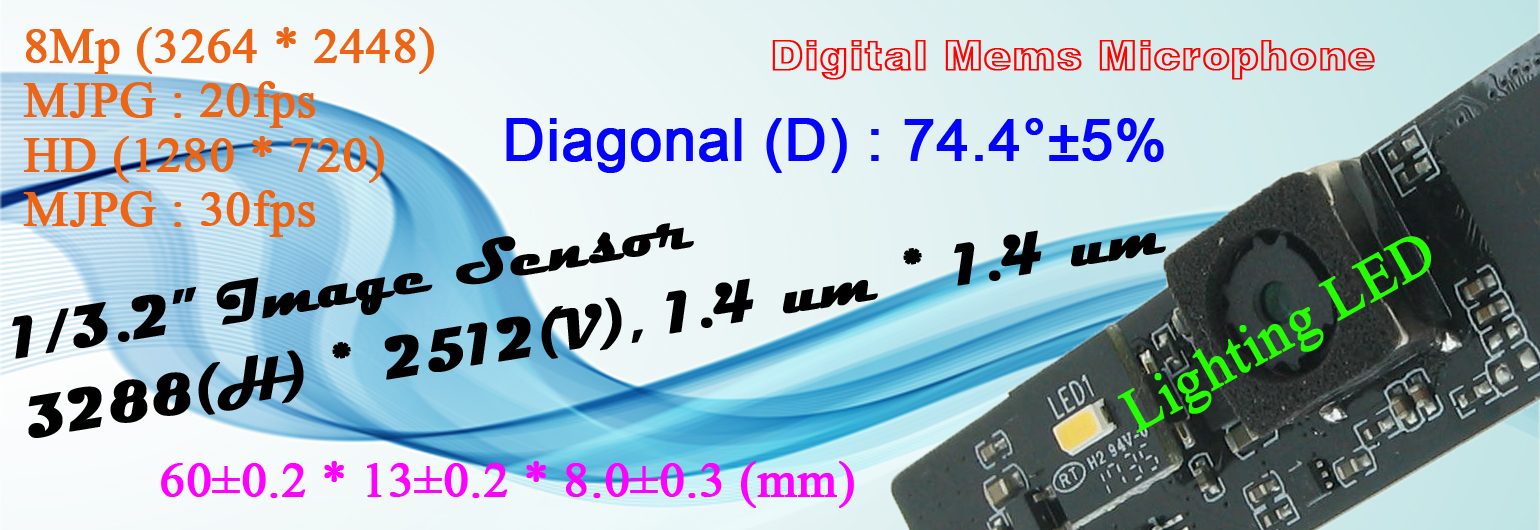

USB Camera Module , 8M , AF , 1pc Mic. , D : 74.4°
PN : W8AZ3-32L7
1. 8M Pixels
2. 8M@20fps
3. Full HD@25fps
4. HD@30fps
5. UAC(1pc Mic.)
6. Flashlight LED
7. Auto Focus(AF)
8. FOV(D) : 74.4°


Overview:

Product Description

The W8AZ3-32L7 is a high-performance 8-megapixel USB camera module designed for seamless integration into a wide range of modern computing devices. Featuring a compact form factor and a robust auto-focus lens, it delivers exceptionally sharp and clear image quality. It is fully compliant with the USB Video Class (UVC) and USB Audio Class (UAC) standards, ensuring true plug-and-play operation without the need for additional drivers on major operating systems. This module is an ideal, ready-to-integrate imaging solution for OEMs and product developers.

Product Scenario

This versatile camera module is perfectly suited for embedding into Industrial PCs for machine vision and inspection tasks, providing high-resolution imagery for quality control. It enhances Notebook and Tablet PCs, enabling crystal-clear video conferencing and content creation. Furthermore, it is an excellent choice for IP TVs and smart displays, facilitating high-definition video calls and interactive user experiences. Its universal compatibility makes it a fundamental component for adding vision to any connected device.

Product Advantage

The W8AZ3-32L7 offers key advantages that set it apart. Its superior 8Mp sensor captures fine details, far exceeding standard HD webcams. The extensive suite of built-in image pre-processing features—including automatic exposure, white balance, and advanced noise reduction—ensures optimal picture quality in any lighting condition. Furthermore, its compliance with global environmental standards (RoHS/REACH) and ultra-compact design make it both an eco-conscious and mechanically versatile choice for product design.



Go Top
Specifications:

Key Product Specifications

  1. High-Resolution Sensor: 1/3.2" CMOS sensor delivering up to 8 Megapixels (3264x2448) resolution.

  2. USB Interface: Compliant with USB 2.0 High-Speed, UVC 1.5, and UAC 1.0 standards for universal plug-and-play functionality.

  3. Versatile Format & Frame Rates: Supports multiple resolutions including 8Mp (20fps in MJPG), Full HD (25fps in MJPG), and VGA (30fps). Outputs in both MJPG and YUY2 formats.

  4. Advanced Image Processing: Features a comprehensive set of controls including Automatic Exposure, White Balance, Focus (AF), Backlight Compensation, Noise Reduction, and Defect-Pixel Correction.

  5. Auto-Focus Lens: 5-element plastic lens with IR filter, featuring a 79.2° diagonal field of view and a focus range from 9.7cm to infinity.

  6. Broad OS Compatibility: Fully supported on Windows 7/8.1/10, Mac OS X 10.4.8+, and Linux (via UVC).

  7. Integrated Digital Microphone: Includes an omni-directional MEMS microphone for synchronized audio and video capture.

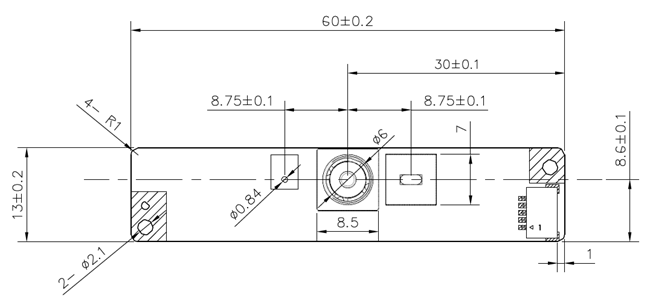

  8. Compact & Efficient Design: Ultra-small dimensions (60x13x8 mm) with low power consumption (<350mA during operation).

  9. Environmental Compliance: Meets RoHS and REACH environmental standards.

  10. Operating Temperature: Stable operation from -15°C to 65°C.







For more detail spec, please mail to info@wellta.com
